Potentiometer 3 Watt (V.R-3)

Bookmark and Share
http://wowslider.net/ by WOWSlider.com v8.7
  • Potentiometer V.R-3 is a panel setting device for a maximum wattage ratting upto 3 watt.
  • V.R-3 has been specifically designed to have longer life, No discontinuity and smooth movement of shaft.
  • It has a feasibility to customize in several ways. Such as shaft modification, lug terminal arrangement, a vast range of ohmic value from 10 ohms to 100k ohms.
  • The capability of the company to produce a vast range of potentiometer is a USP on its own.
  • The Product can be made to Ingress protection upto IP65 and above on request.
  • V.R-3 has several other variants with model number V.R-3G (Ganged Potentiometer), V.R-3S (Endless Potentiometer), V.R-3CT (4 wire potentiometer), V.R-3SW (Potentiometer with switch)


For best performance of V.R-3 below points needs to be taken into consideration.
1) The hole in the panel should not be more than 9.5mm.
2) V.R-3 should be mounted with Star washer given along with the product and perpendicularity between the panel and axis of potentiometer should be maintained.
3). For applications with extreme vibration please use lock nut assembly which is being supplied on the demand.

Mechanical Specification.

Housing Material ROHS complaint Polymer
Mechanical Angle of rotation 285deg +/- 15 deg
Starting Torque.
End Stop Torque.
Bush Material Brass
Spindle Material Brass (standard). S.S on request.
Rotational Life expectancy 50,000 cycles.

Electrical Specification.

Resistance Range 10 ohms to 100kOhms
Total resistance tolerance. +/-10% (Standard) +/- 5% or +/-2% available on request.
End Resistance 2 ohm or 0.1% which ever is greater
Temperature coefficient of resistance Maximum 130 ppm / deg. C
Power rating 3 watt @ 40 deg C
Maximum wiper current Based on power rating of potentiometer and applied voltage
Maximum working voltage 250Vdc
Insulation Resistance 200 Mohms @ 500Vdc
Voltage Proof 1500Vdc for 1 min @ sea Level
Effective Electrical angle 275 +/- 15deg
Temperature range upto 70 deg C
Standard resistance range 10, 25, 50, 100, 250, 500, 1K, 2K, 2K5, 3K, 5K, 10K, 15K, 20K, 25K, 50K, 100K. (Any other values on request)

Ordering Information

V.R-3 - Resistance Value - Shaft length - Any specific Info. V.R-3-10k Ohms-25mm

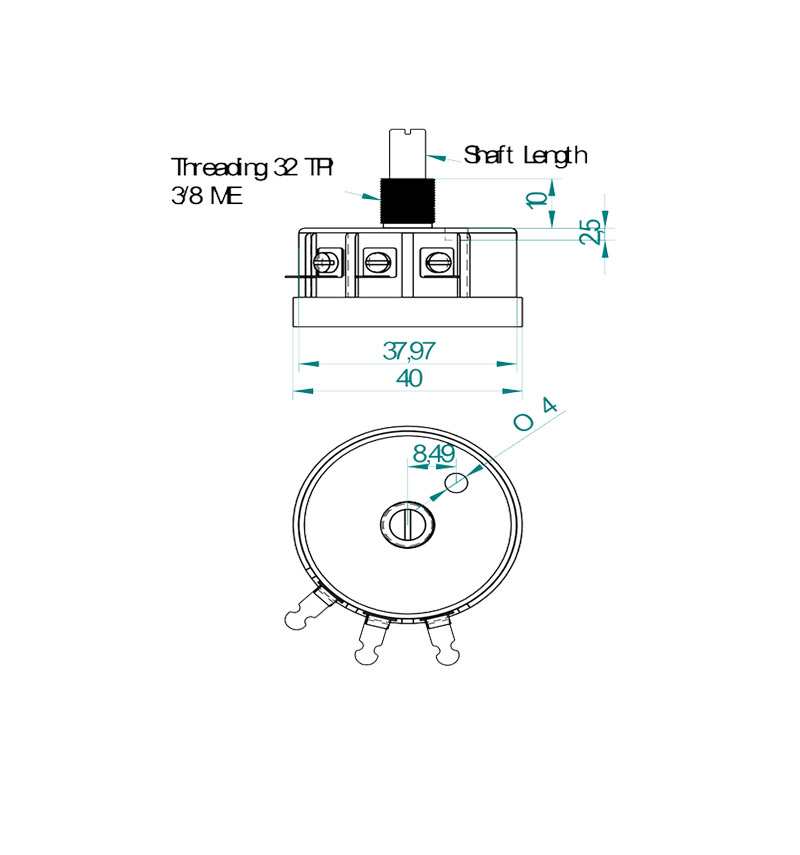

Mechanical Drawing
